A not so great experience of the XFX GeForce 9300 Motherboard
I have been using an old ECS motherboard with AGP bus with Intel E4300 Core Duo processor. It is an older board and therefore not only lacking HDMI connector, it does not even support HDTV resolutions and that make it rather difficult to connect to an even older 1080i RPTV. Furthermore, the board has no support for HD audio formats such as DTS HD MA or DD TrueHD. In fact, like most of the entry level boards, even it has SPDIF connectors inside the board, it is not on the back panel and does not came with a bracket to bring it out either making difficult to get even the none HD digital audio such as DTS or DD out. Since AGP is a dead bus format, it is clear I need at least a new MB if not a new MB and a new graphics card.
My first choice for the replacement is this XFX GeForce 9300 MI-9300-7AS9 motherboard. Unfortunately, as it turned out, this was a mistake for several reasons, but I am ahead of myself. The reason I choose this board is not only it has HDMI, DVI and VGA video output; it also has 6 USB and 1 ESATA connectors at the back panel. Although I have seen many reviews said the GeForce 9300 is not capable of output DTS HD MA or DD TrueHD bit stream, I feel I can live with it, as long as it can output 8 ch. LPCM.
The board is packaged in attractive double box.

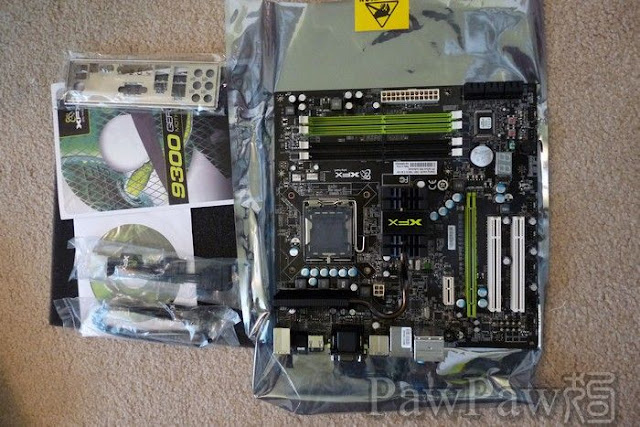

While the board itself is very attractive looking, the included content is on the short side. It only contains a back panel bracket; a SATA power connector adapter cable; a SATA data cable; driver CD and quick installation guide. There was NO printed manual! This was the first motherboard I have ever encountered that does not come with a printed manual and it was a very unpleasant surprise.
Before I got the board I was already somewhat concern with XFX’s web site is on the slim side compares to other motherboard makers. To make matter worse, they have a very paranoid way of support that require customer to register first in order to gain access to driver down load etc. Again, XFX is first and only of PC board maker I have ever seen require customers to register in order to access the support section of the web. But that’s not all! Once I got to the support section of the web, I found out there are really no updated driver or BIOS beyond what was already on the CD or the board. This is 2010 and the latest BIOS is dated 2008! Furthermore, they did not include BIOS flash utility to update the BIOS and the CD update matter failed because they did not set up file name correctly. All these issue bode ill for XFX’s customers.
Regardless, the board itself looks attractive and much better than the old ECS board. Installation wasn’t a problem either. After I installed the board and powered it on, it worked despite the drivers and BIOS were old. I down loaded various components such as motherboard chipset and graphics drivers from the components makers such as Nvidia’s web site.
There were some things else I did not realize this board is lacking before I brought it. First, there is no older IDE support. While this may or may not be a problem for some people, it is to me as my HD DVD drive is an IDE drive. Since no one is making HD DVD drive anymore, if I want to keep playing HD DVD, I need to buy an IDE to SATA adapter. Not only it will be an additional cost, most of time seems are hit and miss at best with many users. The second issue is this board does not have a PS/2 mouse port. Again, this may or may not be a problem to some people but I have a two PC KVM switch that only works with PS/2 keyboard and mouse. It is a nuisance to have to keep two mice on the desk or have to get yet another adapter.
One other thing I don’t like is the SATA connectors are facing sides rather than up to save board space. While some people may like it, I don’t. Once the board is installed inside the case, it is impossible to see these connectors. Once has to use touch feeling to connect new drives. Although it says it has 6 SATA ports, only 4 are available under default BIOS settings.
The on board GeForce 9300 performed quite a bit better than the GeForce 7050 on board the old motherboard. The Window 7’s Aero scores jumped from 3 something to 4.7. Unfortunately, things went downhill from there.
After the installation, I let it running for the burn in process. On the fourth day morning I found the board went dead overnight. Just to be sure, I put the CPU and memory back to the old ECS MB and it boot up nicely. This means the new board is really dead and the choices are either return the board for replacement or return the board for refund. In view of the out dated drivers on XFX’s web site and not much else and the fact that this is the only MB died on me for the last 10-15 years, I did not want to waste for time on replacement and opt for refund.
Because I have not got the chance to try the HDMI port before it went dead on me, I was not able to it in HTPC settings. Even assume it did not failed, it is worth to take note that the GeForce 9300 is not capable to supprot DTS-HD MA or DD TrueHD pass through. The best it can do is to support 8 ch, LPCM and this means additional h/w or s/w is needed to decode these HD format. For the short time I have with the board, I can summarized the pro and con as follow,
Pro:
- Attractive looking board. Good size heat sink on the chipset.
- Have 6 USB and 1 ESATA port on back panel.
- HDMI, DVI and VGA port.
- CMOS reset button on the back panel. Good for people who want to try out on the edge BIOS settings.
- On board GeForce 9300 is a decent performer and probably one of the better IGP.
Con:
- The board went dead in less than four days.
- No printed manual.
- Out dated drivers and BIOS. No BIOS update utility and the CD update version does not work due to wrong file name used.
- Require registration to gain access to a very slim that close to nothing web support pages.
- Side facing SATA ports.
- Only 4 SATA ports are available on default BIOS settings.
- No SPDIF port on back panel.
- I did not try it but looking at the BIOS setting options, it does not appear it is capable to do much over clocking if any.
Because of this not so good experience, I probably will not buy any XFX products any time soon. Luckily for me, there was a sale on AMD Athlon II X3 440 processor plus MSI MB bundle on sale for only $10 more than this XFX board. Although the on board ATI 4200′s video performance on the MSI board was not even close to this XFX board, I am much happy with that purchase.
